New Energy Vehicle Battery Management System (BMS) Product Series

Name: "New Energy Vehicle Battery Management System (BMS) Product Series"
Rating: 5 (211 reviews)

SKU: 5699041451

Model: DTH2302

Product Details

Product Specification

Type	Mini electric vehicle BMS; Low-speed four-wheeler BMS; Sightseeing vehicle BMS	Model	DTH2302
Params	DTH2302 Voltage platform: 30–95V Cell configuration: 15S–24S Continuous working current: 200A discharge Peak current: 400A / 30s Supported battery chemistry: NCM, LMO, LCO, LFP Single cell voltage: 0–5V, ±25mV@25℃ Temperature sensing channels: 6 external NTC Communication interface: RS485 ×2 Protection functions: Over-charge, over-discharge, over-current, over-temperature, over-voltage, under-voltage, insulation detection Dimension: 110mm * 255mm * 47mm Passive balancing current: ≥50mA@25℃ SOC/SOH/SOP estimation: ≤8%@25℃	Material	DTH2302 Key materials: Not specified
Applicable Industry	Cultural Tourism Industry \| Smart Scenic Area Industry \| Hotel & Resort Industry \| Theme Park Industry \| Large-scale Industrial Park Industry \| Community Micro-mobility Industry

Feature

The DTH2302 Battery Management System is designed for mini electric vehicles and sightseeing vehicles. It supports a 30–95V voltage platform and 15S–24S cell configurations, compatible with NCM, LMO, LCO, and LFP chemistries. The system provides a continuous discharge current of 200A and a peak current of 400A/30s. It features 6 external NTC temperature sensing channels, operating from -30℃ to 85℃. Communication interfaces include RS485 ×2. Comprehensive protection functions cover over-charge, over-discharge, over-current, over-temperature, over-voltage, under-voltage, and insulation detection. Pre-charge function is supported. Wake-up methods include charge/discharge DET wake-up, charge wake-up, and RS485 wake-up. Heating function is supported with output voltage equal to battery pack voltage and current ≤6A. Insulation detection range is 0–20MΩ. The dimensions are 110mm * 255mm * 47mm. Passive balancing current is ≥50mA@25℃. SOC/SOH/SOP estimation accuracy is ≤8%@25℃, and up to 500 fault records can be stored. Selected models can connect with APP, PC, IoT platforms, or displays to support vehicle monitoring and software expansion. Customized PCBA and integrated hardware-software development can be confirmed against cell chemistry, series count, current, protocol, and operating conditions.

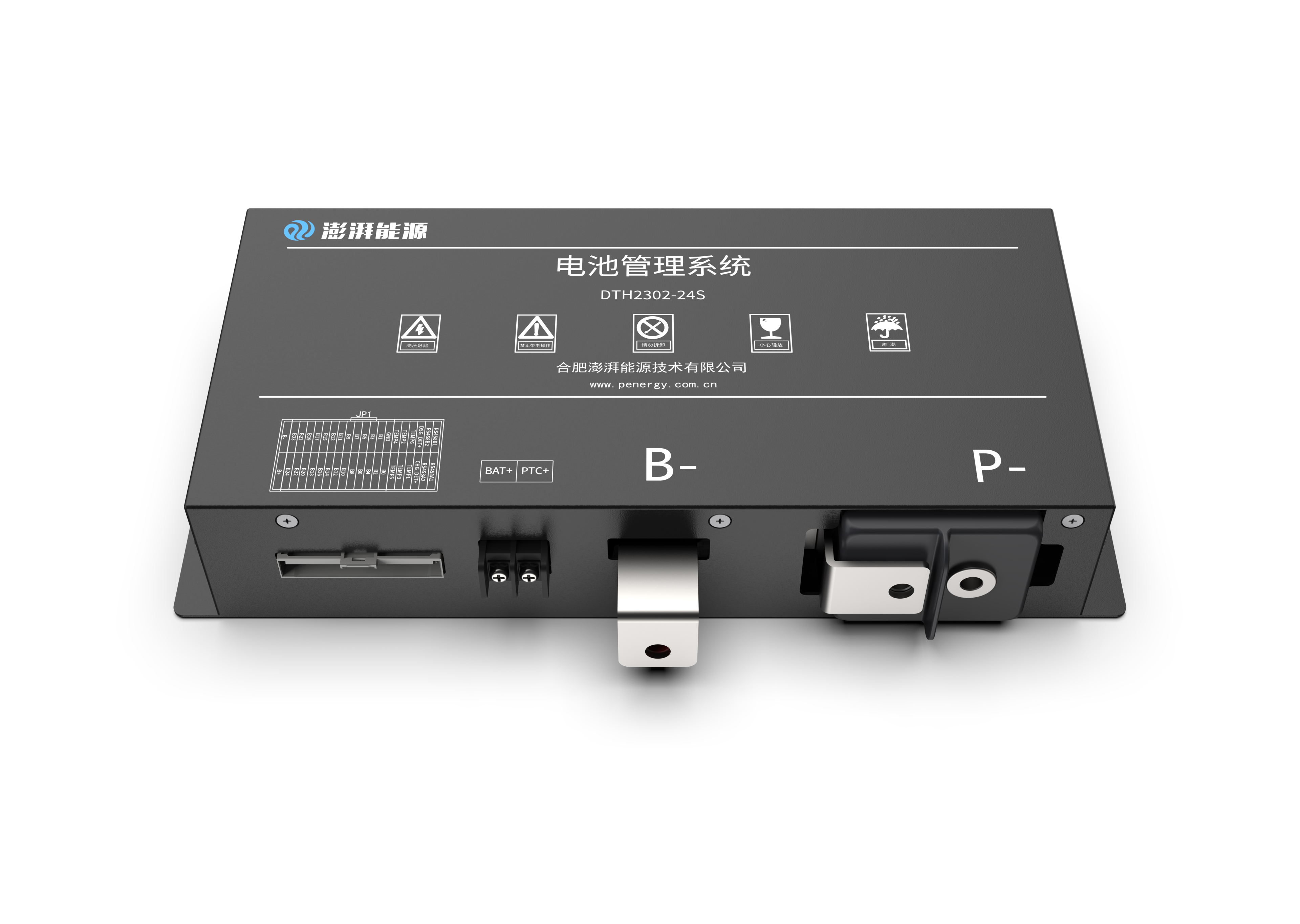

DTH2302
